Fuel Tank Removal/Installation: AWD

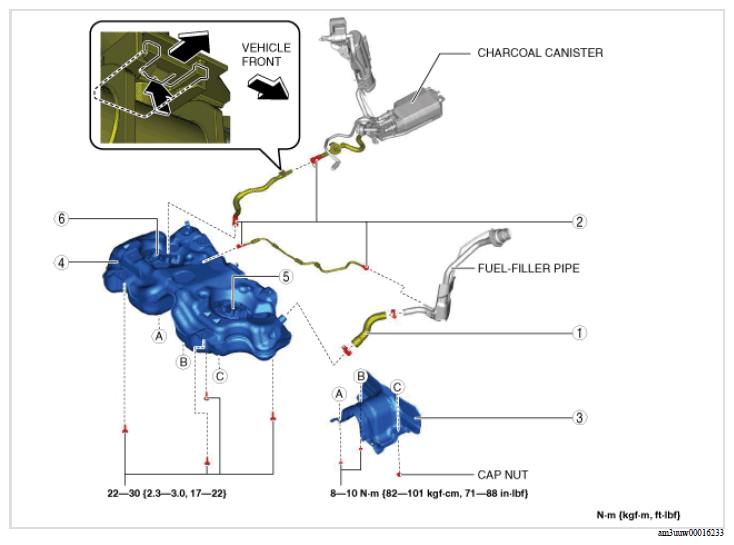

Fig 1: Fuel Tank Components Location With Torque Specifications (AWD)

Courtesy of GENERAL MOTORS COMPANY

COMPONENT OPERATIONS

Component no.	Refer to
1	Joint hose (See Joint Hose Installation Note .)
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
3	Fuel tank insulator
4	Fuel tank (See Fuel Tank Removal Note (AWD) .)
5	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
6	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .)
