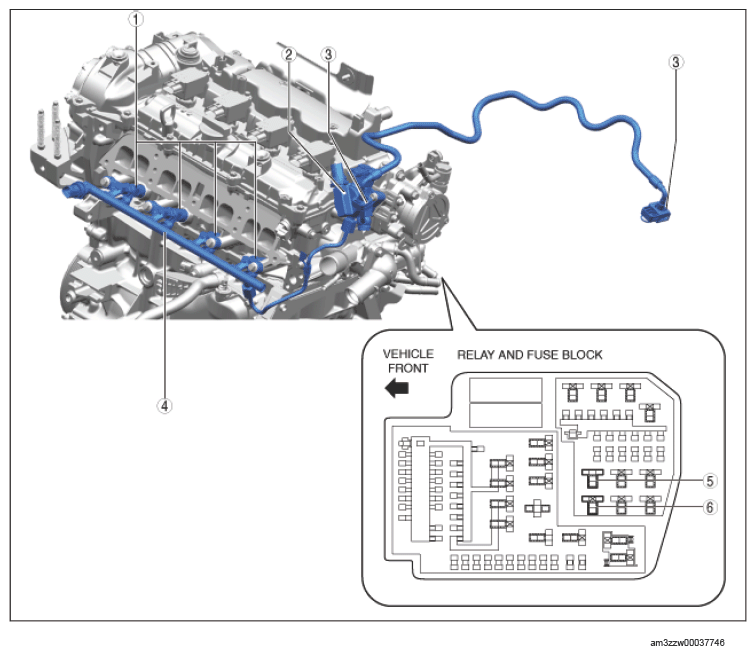

Engine Compartment Side
FUEL SYSTEM COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See FUEL INJECTOR INSPECTION [SKYACTIV-G 2.5T] .) |
| 2 | High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See HIGH PRESSURE FUEL PUMP INSPECTION [SKYACTIV-G 2.5T] .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 4 | Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 5 | Fuel injector relay (See RELAY INSPECTION .) |
| 6 | Fuel pump relay (See RELAY INSPECTION .) |
