Fuel-Filler Pipe Removal/Installation: Notes
WARNING:
- Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
- Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "Fuel Line Safety Procedure" to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
- A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.
- Connect a ground wire to the oil-resistant fuel hose for draining fuel and the vehicle because the oil-resistant fuel hose for draining fuel may become electrically charged.
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.5T] .)
- Drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-G 2.5T] .)
- Open the fuel-filler lid.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.5T] .)

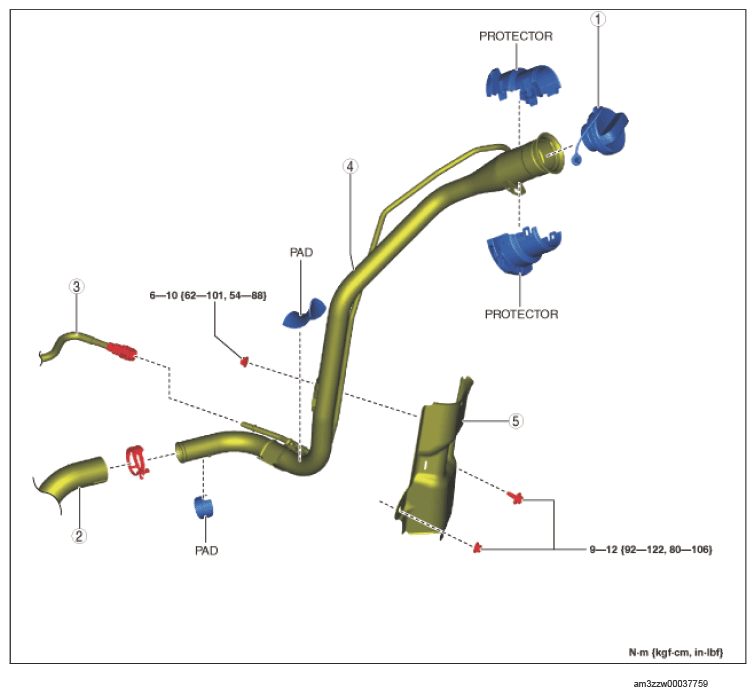

COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Fuel-filler cap |
| 2 | Joint hose (See JOINT HOSE REMOVAL NOTE .) (See JOINT HOSE INSTALLATION NOTE .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 4 | Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL NOTE .) (See FUEL-FILLER PIPE INSTALLATION NOTE .) |
| 5 | Fuel-filler pipe protector |
