Protector Removal Note

  1. Remove the clip from the protector.
    G14579405Courtesy of MAZDA MOTORS CORP.

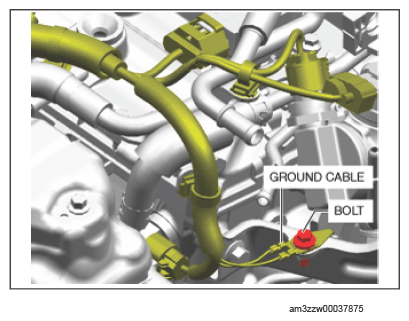

  2. Remove the ground cable from the protector.
    G14579400Courtesy of MAZDA MOTORS CORP.
  3. Remove the protector.
