Ignition System Location Index

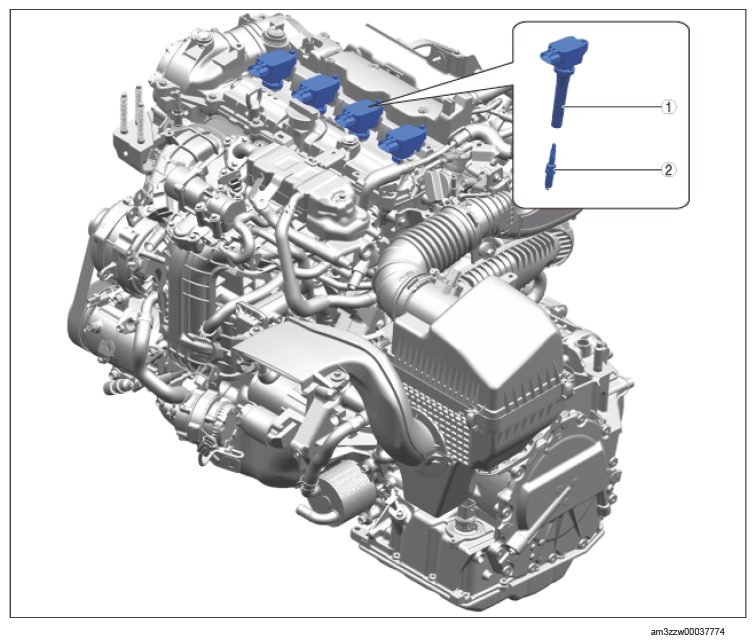

Fig 1: Ignition System Components Location

Courtesy of MAZDA MOTORS CORP.

IGNITION SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See IGNITION COIL INSPECTION [SKYACTIV-G 2.5T] .)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See SPARK PLUG INSPECTION [SKYACTIV-G 2.5T] .)
