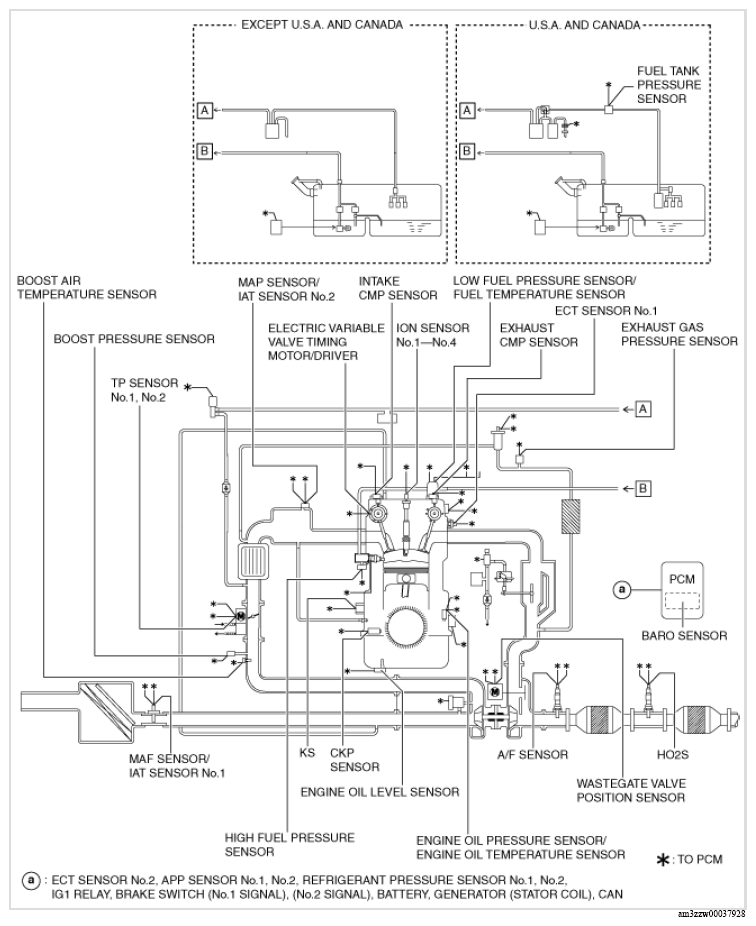

Control System Diagram (VIN Y)
Control System Diagram (VIN Y)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
