Fuel Pump Control Module Removal/Installation (VIN M)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.

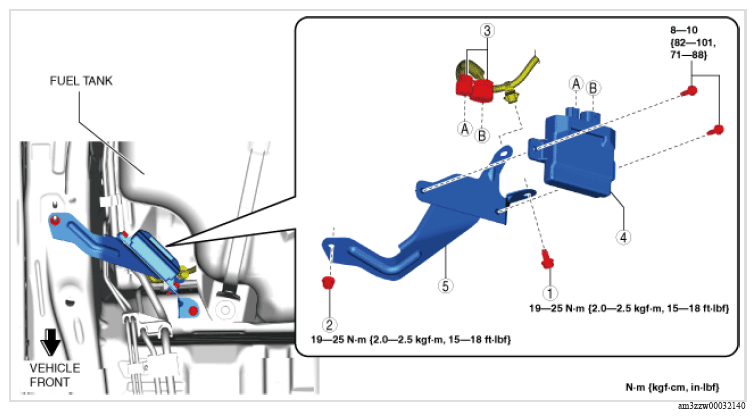

FUEL PUMP CONTROL MODULE COMPONENT OPERATIONSComponent No Refer to 1 Fuel pump control module bracket installation bolt 2 Fuel pump control module bracket installation nut 3 Fuel pump control module connector 4 Fuel pump control module 5 Fuel pump control module bracket
