Intermediate Shaft Removal Note

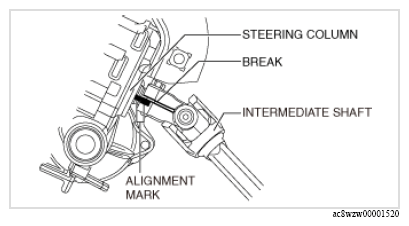

  1. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    G16375401Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the steering gear (pinion) and intermediate shaft as shown in the figure.
    G16375402Courtesy of MAZDA MOTORS CORP.

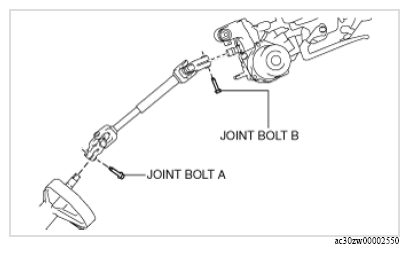

  3. Remove the joint bolts in the order of joint bolts A and B.
    G16375403Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft.
