Tie Rod Disassembly Note

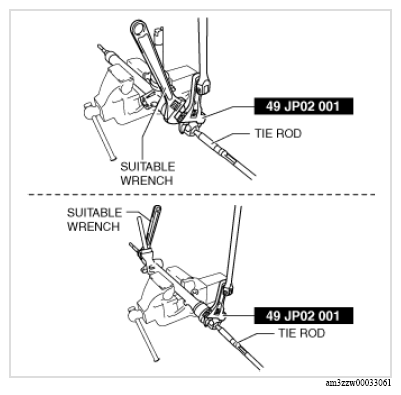

  1. Lock the steering gear against rotation using a wrench and remove the tie rod using the SST.
G16375425Courtesy of MAZDA MOTORS CORP.
