Active Air Shutter Location Index

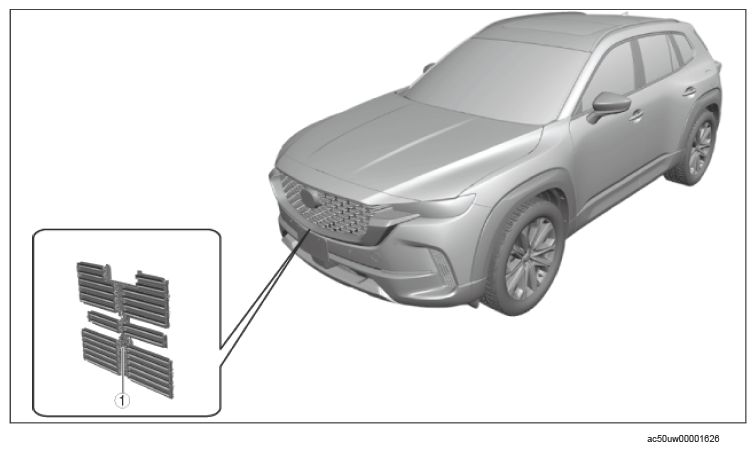

Fig 1: Active Air Shutter Components Location

Courtesy of MAZDA MOTORS CORP.

ACTIVE AIR SHUTTER COMPONENT OPERATIONS

Component No.	Refer to
1	Active air shutter (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .) (See ACTIVE AIR SHUTTER INSPECTION .)
