Remove Driver Side Power Window Subswitch (Rear): Notes

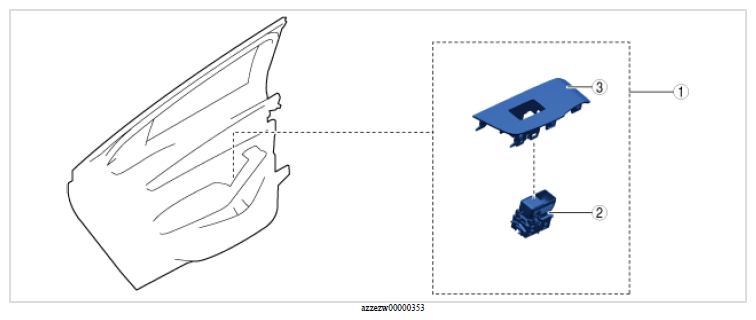

1. Remove using the procedure shown in the figure.
   • The figure shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Power window subswitch component (See Power window subswitch component removal note  ).
2	Power window subswitch (See Power window subswitch removal note  ).
3	Power window subswitch cover
