Remove Passenger Side Sunvisor: Notes

Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).

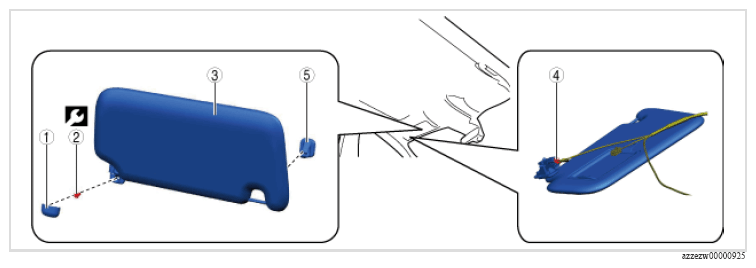

Fig 1: Passenger Side Sunvisor Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name	Applicable condition
1	Sunvisor cap	-	-
2	Screw (See Sunvisor cap removal note ).	-	3 N.m {31 kgf.cm, 27 in.lbf}
3	Sunvisor	-	-
4	Connector	With vanity mirror illumination	-
5	Center adapter (See Center adapter removal note ).	-	-
