Install Oil Pan Drain Plug

  1. Install in the order indicated in the table.

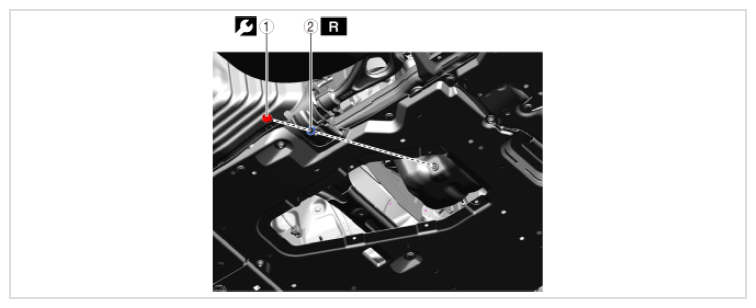

G16707131Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Oil pan drain plug - 35.5 N.m {3.6 kgf.m, 26.05 ft.lb}
2 Gasket Replacement part -
