Closing capsule cover note

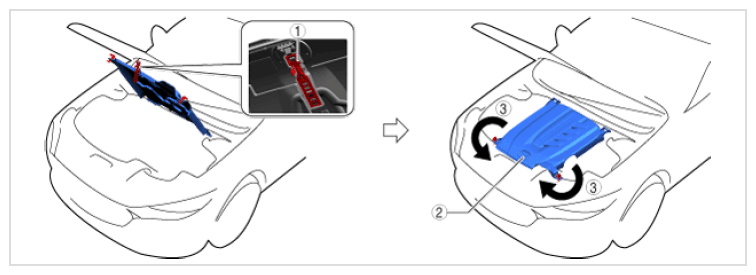

  1. Close the capsule cover as shown in the figure below.
G16707124Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
