Opening capsule cover note

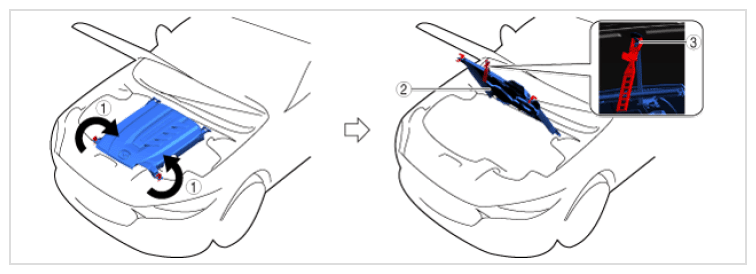

  1. Open the capsule cover as shown in the figure below.
G16707123Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
