Remove Air Cleaner Component

Remove in the order indicated in the table.

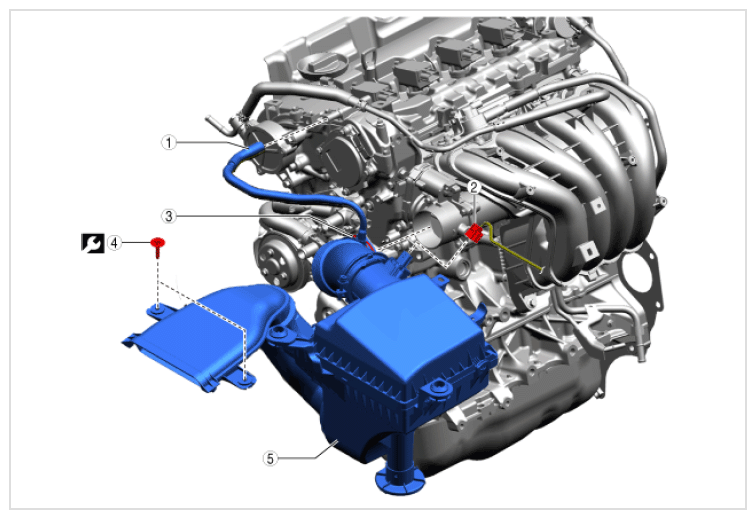

Fig 1: Air Cleaner Component, Hose Clamp And Bolt With Torque Specifications

G16707202

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Ventilation hose	-
2	Connector	-
3	Hose clamp	3 N.m {30 kgf.cm, 26 in.lb}
4	Bolt	9.5 N.m {95 kgf.cm, 82 in.lb}
5	Air cleaner component	-
