Remove Driver Side Front Mudguard

1. Remove using the procedure shown in the figure below.
   • the figure below shows the left side (same as right side).

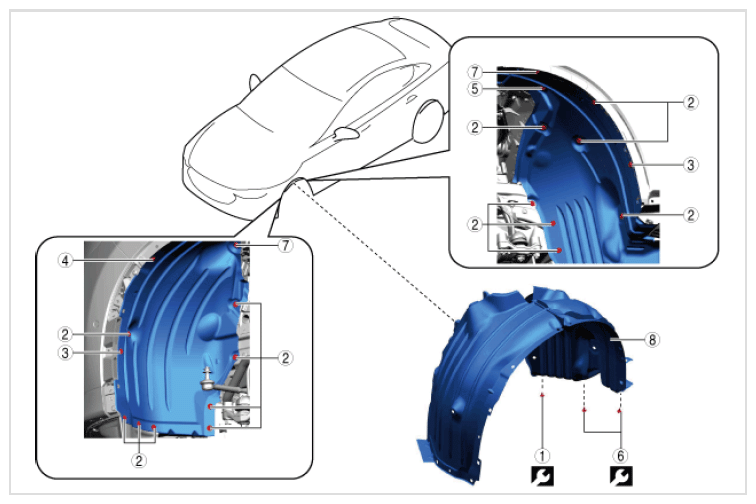

Fig 1: Driver Side Front Mudguard Fastener And Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
2	Fastener	-
3	Fastener	-
4	Fastener	-
5	Fastener	-
6	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
7	Fastener	-
8	Front mudguard	-
