Remove Driver Side Front Splash Shield No. 1

1. Remove using the procedure shown in the figure below.
   • the figure below shows the left side (same as right side).

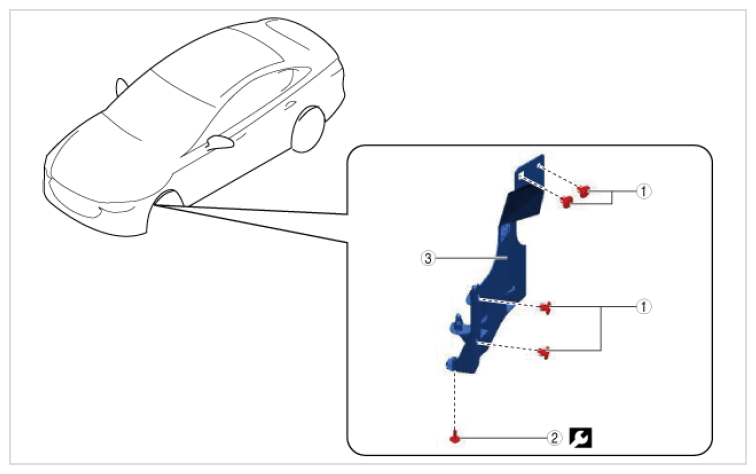

Fig 1: Driver Side Front Splash Shield No. 1 Fastener And Screw With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Fastener	-
2	Screw	2 N.m {20 kgf.cm, 17 in.lb}
3	Front splash shield No. 1	-
