Remove Passenger Side Strut Tower Bar: Notes

Remove using the procedure shown in the figure below.
- the figure below shows the right side (same as left side).

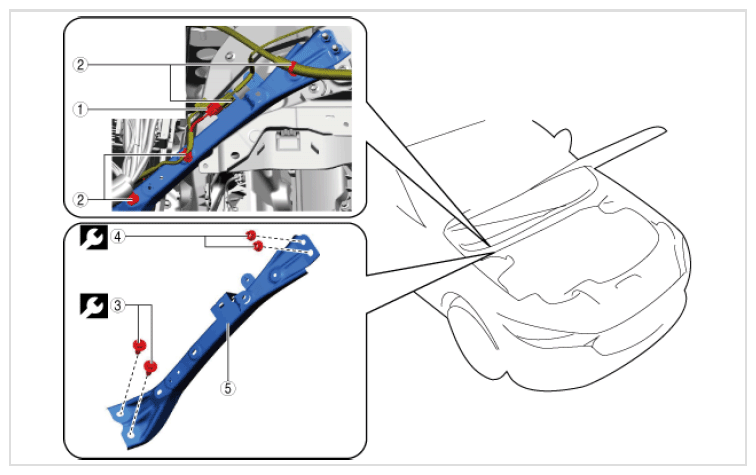

Fig 1: Passenger Side Strut Tower Bar Bolt And Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name	Applicable condition
1	Connector	With windshield wiper de-icer	-
2	Wiring harness clip (See Wiring harness clip removal note ).	-	-
3	Bolt	-	35 N.m {3.55 kgf.m, 25.8 ft.lb}
4	Nut	-	35 N.m {3.55 kgf.m, 25.8 ft.lb}
5	Strut tower bar	-	-
