Connector connection note
CAUTION:
- Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.
- If the lever is moved with the PCM connector inserted at an angle, the connector itself may be damaged. Verify that the PCM connector is inserted straight.

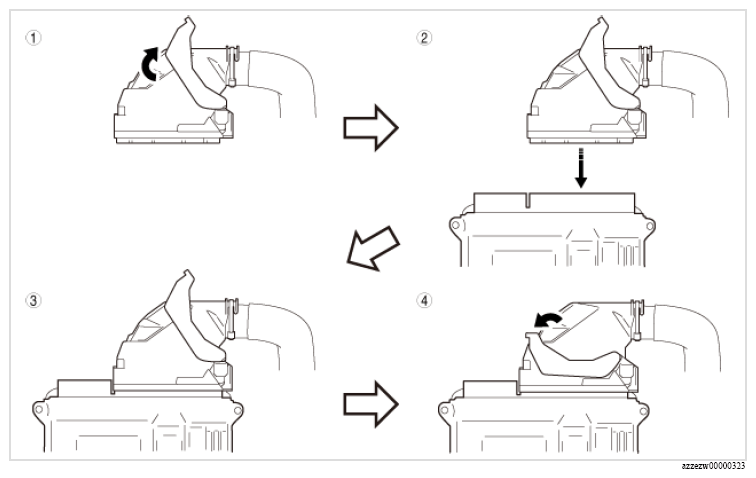

- Connect the connector shown in the figure.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| (1) (2)... | Servicing procedure |
