Remove Power Disconnection Relay

1. Remove using the procedure shown in the figure below

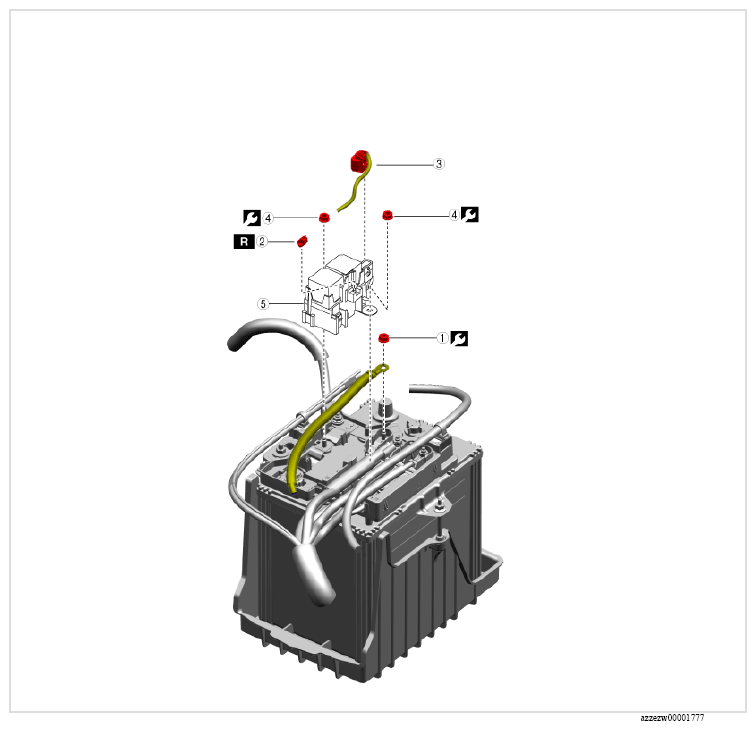

Fig 1: Power Disconnection Relay, Connector, Band And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Procedure	Part name
1	Nut	-	5.5 N.m {54 kgf.cm, 46 in.lb}
2	Band	Non-reusable	-
3	Connector	-	-
4	Nut	-	5.5 N.m {54 kgf.cm, 46 in.lb}
5	Power disconnection relay	-	-
