Remove Selector Lever Bracket

  1. Remove using the procedure shown in the figure.

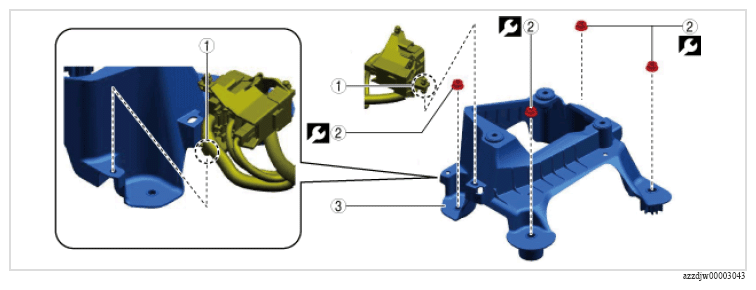

    Fig 1: Selector Lever Bracket Nut With Torque Specifications
    G16708894Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Step Part name
    1 Wiring harness clip -
    2 Nut 19 N.m {1.95 kgf.m, 14.1 ft.lbf}
    3 Selector lever bracket -
