Remove Engine Oil Level Sensor

  1. Remove in the order indicated in the table.

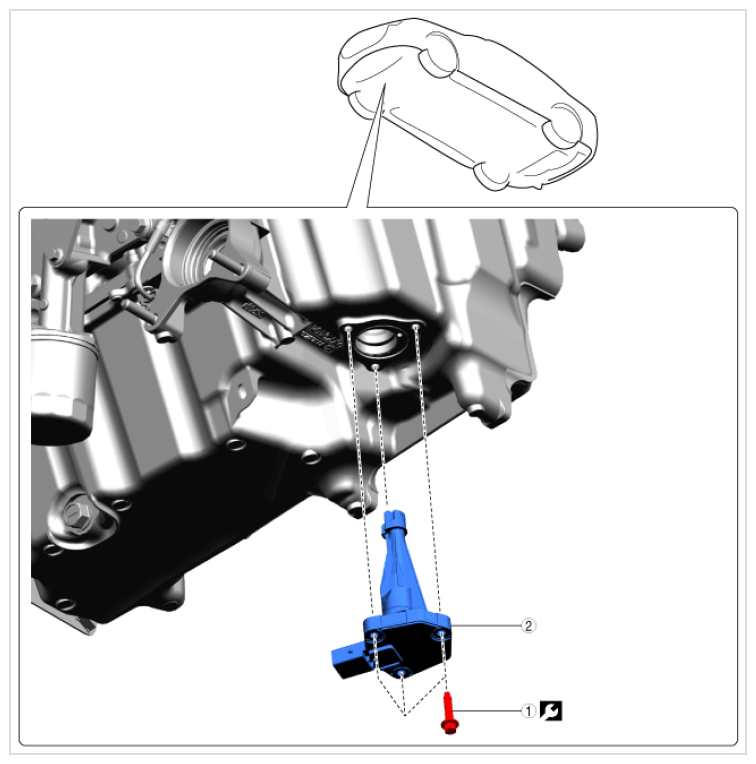

Fig 1: Engine Oil Level Sensor Bolt With Torque Specifications
G16707133Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt 9 N.m {92 kgf.cm, 80 in.lb}
2 Engine oil level sensor -
