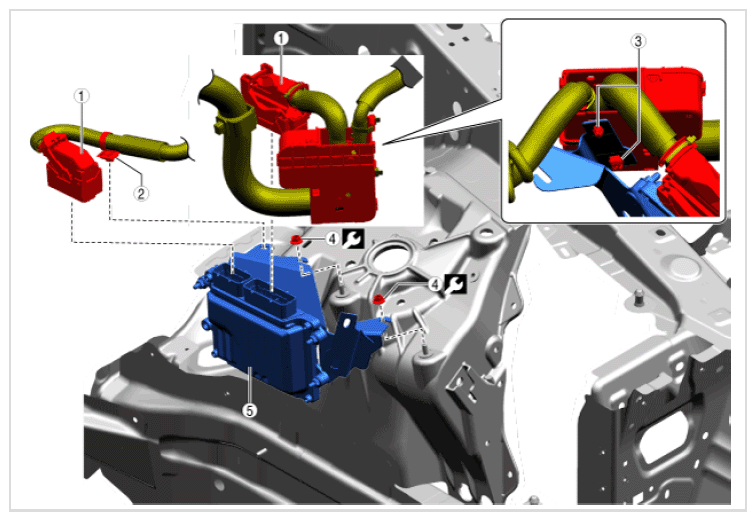

Remove ECM Component
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Step |
Part name |
 |
| 1 |
Connector |
- |
| 2 |
Wiring harness clip |
- |
| 3 |
Wiring harness clip |
- |
| 4 |
Nut |
9.5 N.m {97 kgf.m, 84 ft.lb} |
| 5 |
ECM component |
- |
