Tie Rod Disassembly Note
- Move the stopper at the steering rack end in the direction of the arrow so that a wrench can be hooked to the steering rack end.
- The figure shows the left side (same as right side).

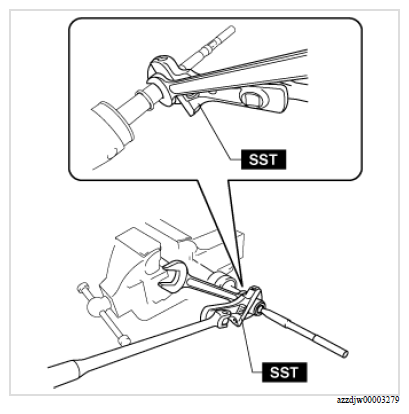

- Stop the end of the steering rack (pinion gear side) with a wrench, etc. SST Remove the inner ball joint using the tool.
- The figure below shows the left side (same as right side).
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| 49 JP02 001 |
