Remove Wiper And Washer Switch: Notes

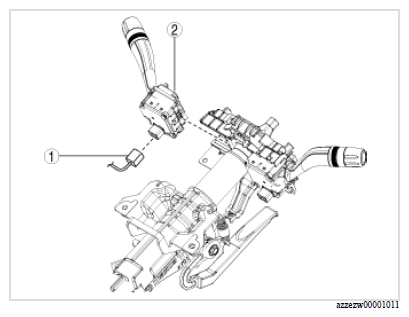

1. Remove using the procedure shown in the figure.

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Connector
2	Wiper and washer switch (See Wiper and washer switch removal note ).
