Third-Row Buckle Removal/Installation

D-code

• 57300B
  CAUTION:

  • When performing the procedure with a third-row seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
  NOTE:

  • The third-row seat buckle is integrated with the third-row seat back component.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
3. Remove the trunk board. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
4. Remove the third-row seat cushion. (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
5. Remove in the order indicated in the table.

Two-seater type

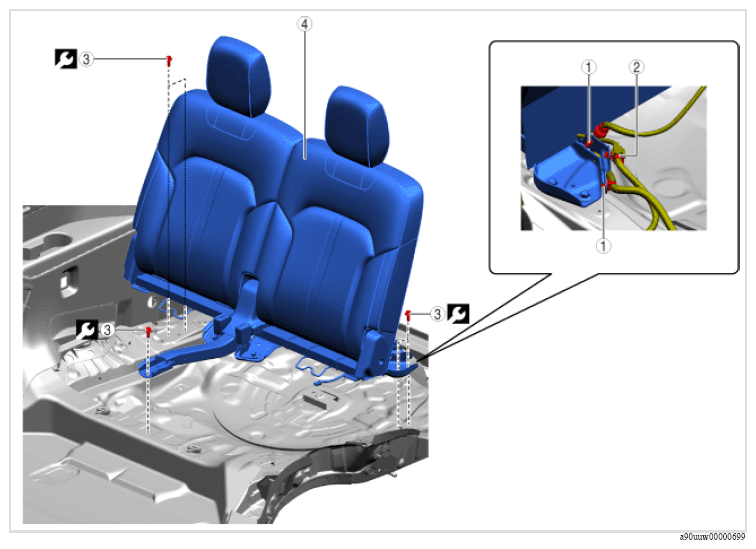

Fig 1: Third-Row Buckle Components Location With Torque Specification (Two-Seater Type)

Courtesy of MAZDA MOTORS CORP.

Step	Part name	Applicable condition
1	Clip	With Bose®	-
2	Connector	-	-
3	Bolt	-	45 N.m {4.6 kgf.m, 33.3 ft.lbf}
4	Third-row seat back component	-	-

Three-seater type

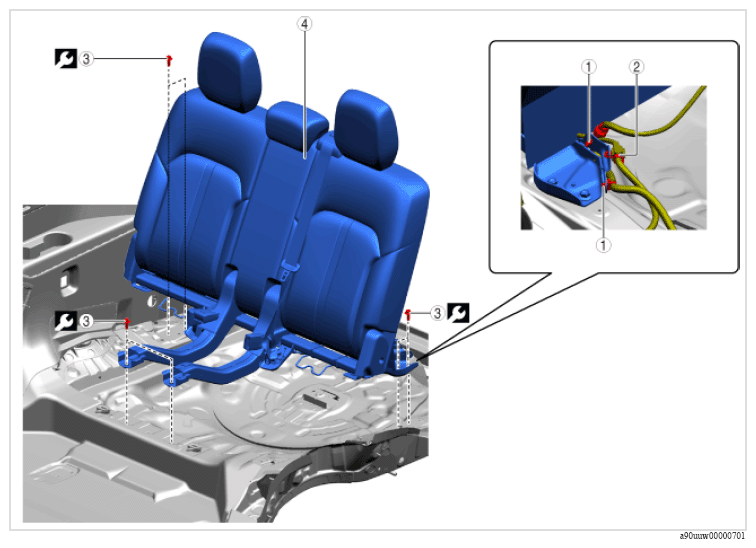

Fig 2: Third-Row Buckle Components Location With Torque Specification (Three-Seater Type)

Courtesy of MAZDA MOTORS CORP.

Step	Part name	Applicable condition
1	Clip	With Bose®	-
2	Connector	-	-
3	Bolt	-	45 N.m {4.6 kgf.m, 33.3 ft.lbf}
4	Third-row seat back component	-	-

1. 6. Install in the reverse order of removal.
2. 7. Perform the power Liftgate (PLG) initialization procedure. (See POWER LIFTGATE (PLG) INITIALIZATION PROCEDURE .)
3. 8. Initialize power outer mirror retract/return function. (See POWER OUTER MIRROR INITIALIZATION PROCEDURE .)
