Driver side lower panel removal note

1. Partially peel back the seaming welt until the driver side lower panel can be removed.

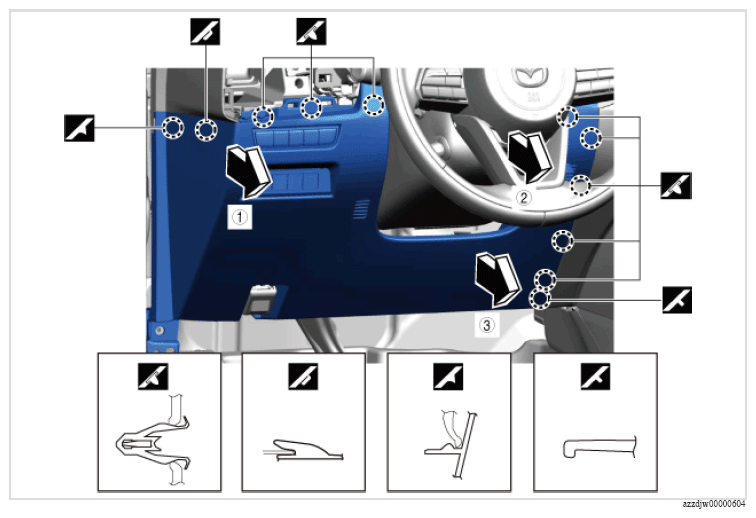

2. Remove the driver side lower panel as shown in the figure below.

   Courtesy of MAZDA MOTORS CORP.

   SYMBOL AND CONTENT DESCRIPTION



   Symbol	Content
   (1) (2)...	Servicing procedure

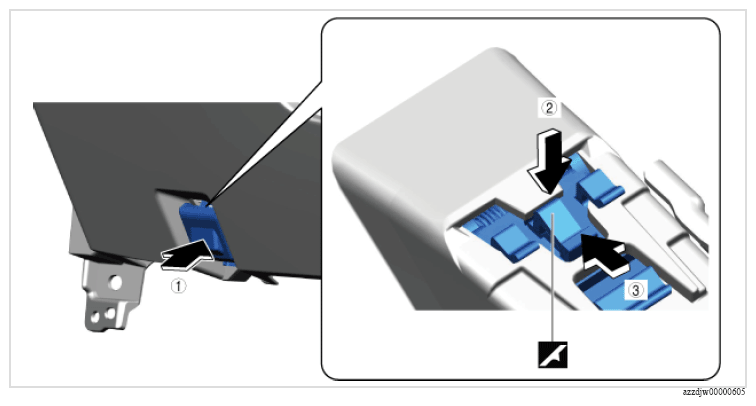

3. Detach the tab on the hood release lever from the driver side lower panel as shown in the figure below.

   Courtesy of MAZDA MOTORS CORP.

   SYMBOL AND CONTENT DESCRIPTION



   Symbol	Content
   (1) (2)...	Servicing procedure

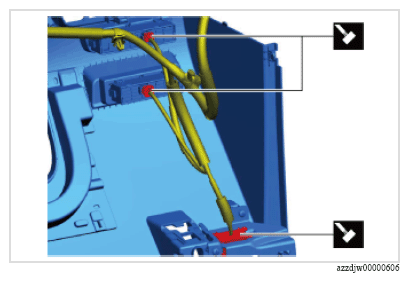

4. Disconnect the connector shown in the figure below.

Courtesy of MAZDA MOTORS CORP.
