Steering shift switch removal note

  1. Pull out the steering shift switch from the steering wheel until the steering shift switch connector is visible.

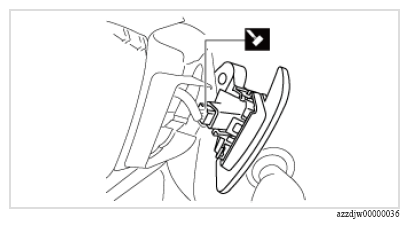

    • The figure shows the right side (same as left side).
    G16706867Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the steering shift switch connector.
  3. Remove the steering shift switch.
