Remove Latch Cover Component: Notes

1. Remove using the procedure shown in the figure.

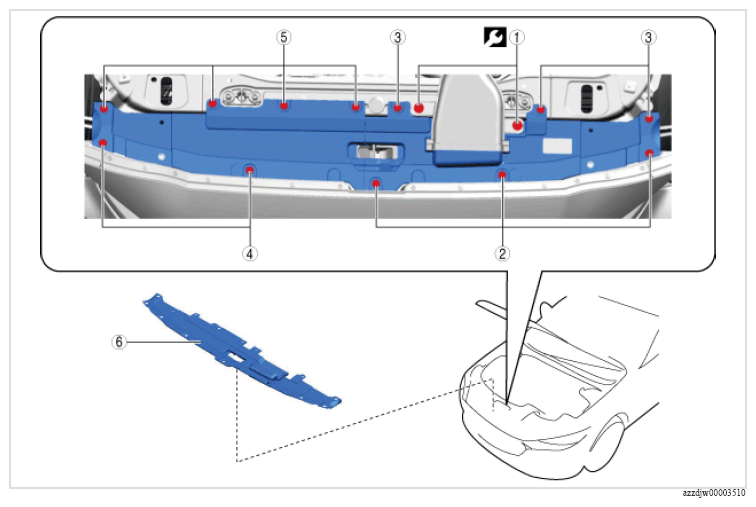

Fig 1: Latch Cover Component, Fasteners And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Fastener	-
3	Fastener	-
4	Fastener	-
5	Fastener	-
6	Latch cover component (See LATCH COVER COMPONENT REMOVAL NOTE )	-
