Remove Power Window Main Switch: Notes

NOTE:

• The power window main switch is integrated with the following part.
  • Power outer mirror switch

1. Remove using the procedure shown in the figure below.

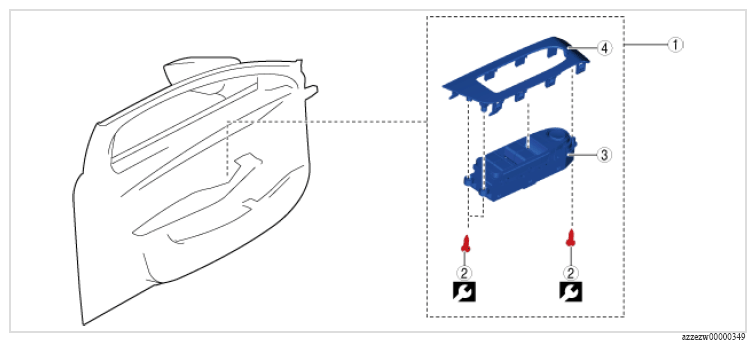

Fig 1: Power Window Main Switch Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Power window main switch component (See Power window main switch component removal note ).	-
2	Screw	1 N.m {10 kgf.cm, 9 in.lb}
3	Power window main switch	-
4	Power window main switch cover	-
