Power System Location Index (Exterior Front)

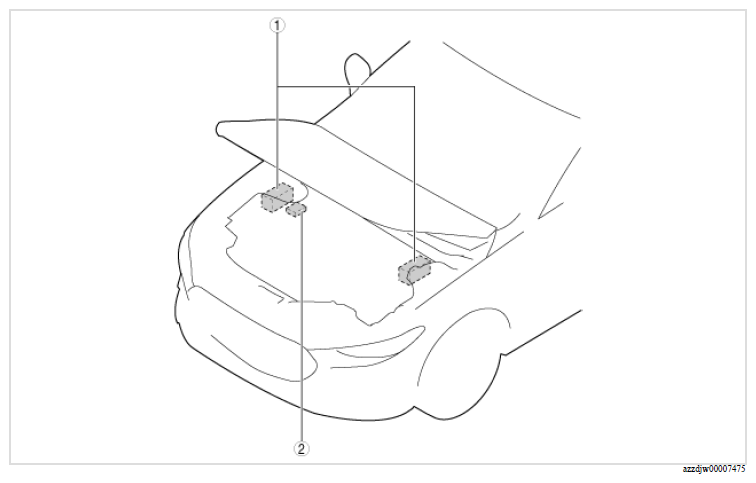

Fig 1: Power System Components Location (Exterior Front)

Courtesy of MAZDA MOTORS CORP.

POWER SYSTEM COMPONENT OPERATIONS

Component no.	Refer to
1	Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION ). (See FUSE SERVICE CAUTIONS ). (See RELAY LOCATION ). (See RELAY INSPECTION ).
2	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION ).
