Engine Compartment

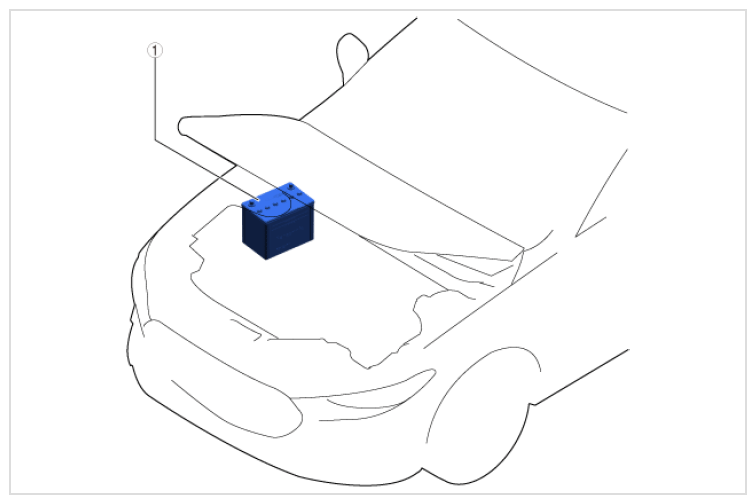

Fig 1: Charging System Components Location - Engine Compartment (H3T)

Courtesy of MAZDA MOTORS CORP.

CHARGING SYSTEM COMPONENT OPERATIONS (H3T)

Component No.	Refer to
1	Battery (See BATTERY REMOVAL/INSTALLATION ). (See BATTERY INSPECTION ). (See BATTERY RECHARGING ). (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
