Remove Control Unit Cover

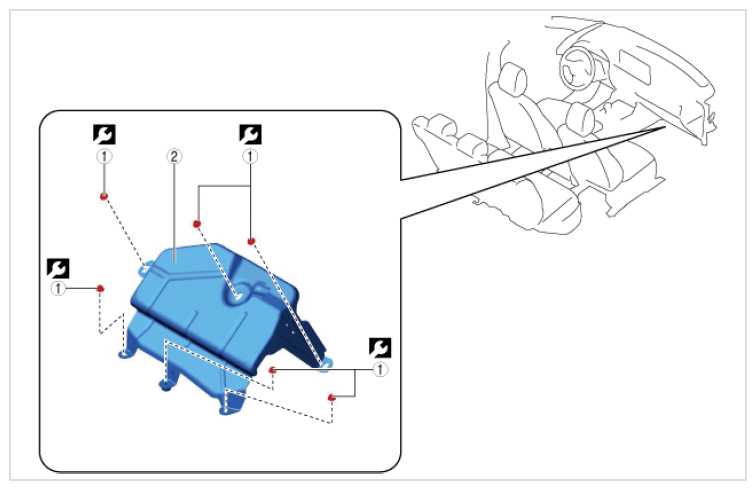

Fig 1: Control Unit Cover And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Procedure	Part name
1	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Control unit cover	-
