Remove Foot Support: Notes

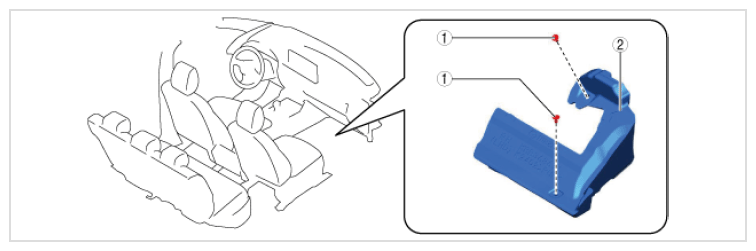

Remove using the procedure shown in the figure.

G16704428

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Fastener (See Fastener removal note ).
2	Foot support
