Pre-inspection preparation
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)

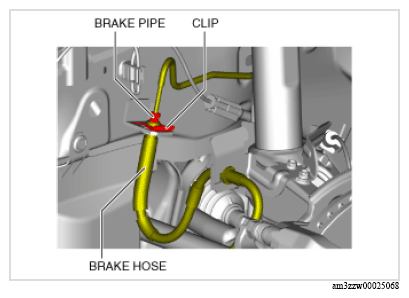

- Disconnect the brake pipe from the brake hose.
- Remove the clip.
- Remove the brake hose from the bracket.

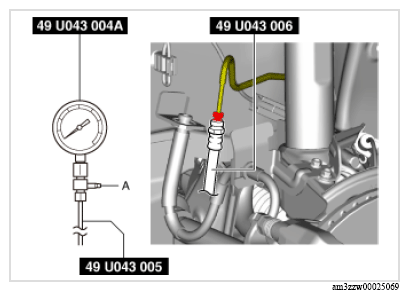

- Install the SSTs to the brake pipe as shown in the figure.
- Bleed the brake line and the SSTs of air. Bleed the air form the SSTs using bleeder screw A.
- Install the pedal force gauge to the brake pedal.
- Connect the vacuum gauge to the vacuum line.
