Disc Pad Installation Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Clean the exposed area of the piston.
CAUTION:
- If the piston is pushed into the rear brake caliper while rotating the piston, the rear brake caliper internal parts and dust seal could be damaged. Be careful not to rotate the piston when pushing the piston into the rear brake caliper.

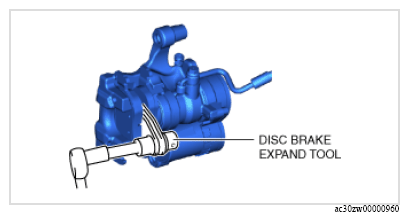

Completely press in the piston using a commercially available disc brake expander tool.

Courtesy of MAZDA MOTORS CORP.
Apply grease to the locations shown in the figure.

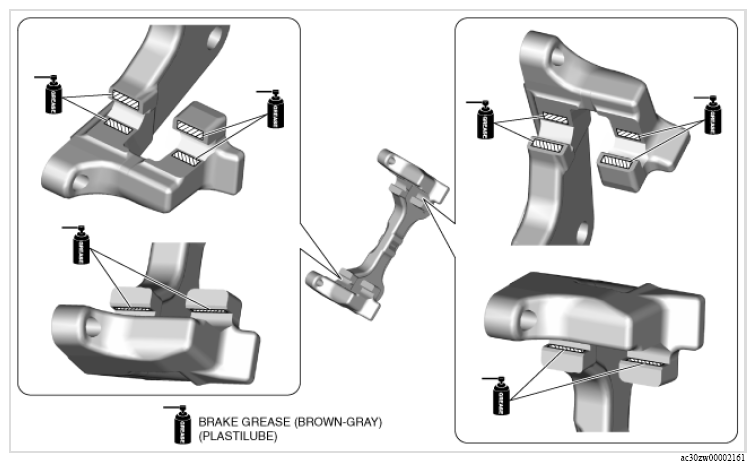

16-inch

Courtesy of MAZDA MOTORS CORP.

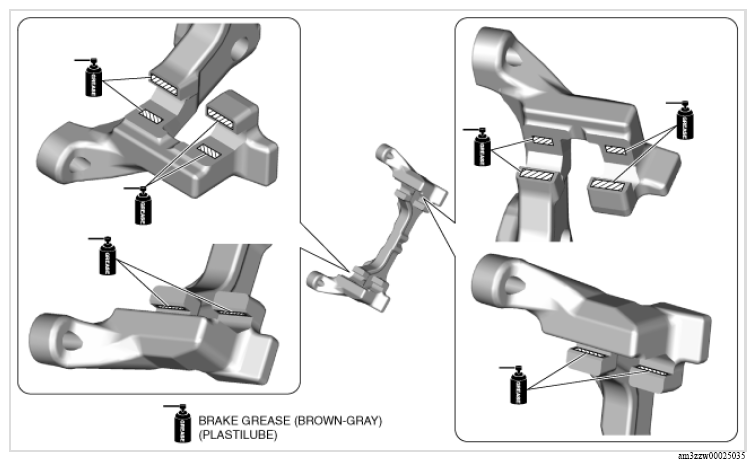

17-inch

Courtesy of MAZDA MOTORS CORP.
Install the disc pads to the rear brake mounting support.
