Short Cord Removal Note
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

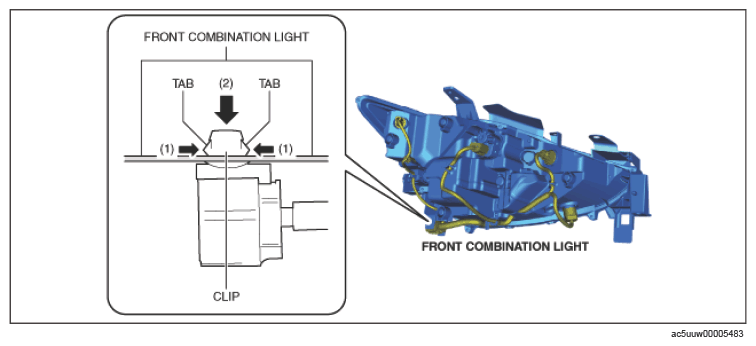

- While pressing the clip tabs in the direction of arrows (1) shown in the figure below, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the short cord.
