Hazard Warning Switch Removal/Installation
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the lower decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Remove the upper decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

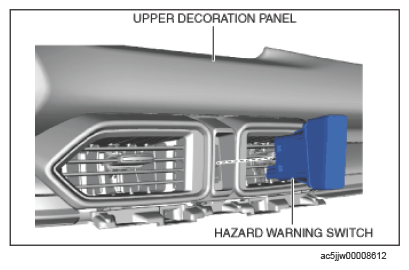

- While pressing the hazard warning switch tabs in the direction of arrows (1) shown in the figure below, press the hazard warning switch in the direction of arrow (2), and detach the hazard warning switch tabs from the upper decoration panel.
- Remove the hazard warning switch.
- Install in the reverse order of removal.
