Entertainment Location Index

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

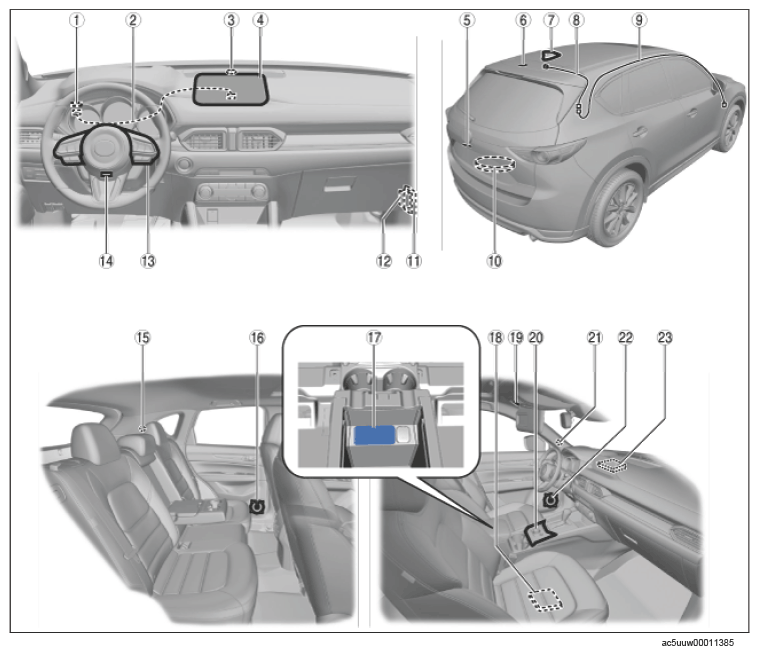

Fig 1: Entertainment Components Location

Courtesy of MAZDA MOTORS CORP.

ENTERTAINMENT COMPONENT OPERATIONS

Component No.	Refer to
1	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
2	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .)
3	Front center speaker (with Bose ®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .)
4	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY DISASSEMBLY/ASSEMBLY [TYPE A] .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
5	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
6	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
7	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
8	Antenna feeder No. 2 (See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 2 INSPECTION .)
9	Antenna feeder No. 1 (See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 1 INSPECTION .)
10	Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .) (See BASS-BOX INSPECTION .)
11	Tuner and amp unit (TAU) bracket (Type-A) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION .)
12	Tuner and amp unit (TAU) [(Type-A)] (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION [TYPE-A] .) Remote tuner (RT) [(Type-B)] (See REMOTE TUNER (RT) REMOVAL/INSTALLATION [TYPE-B] .) (See REMOTE TUNER (RT) INSPECTION [TYPE B] .)
13	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
14	AudioPilot microphone (with Bose ®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION .)
15	Rear speaker (with Bose ®) (See REAR SPEAKER REMOVAL/INSTALLATION .) (See REAR SPEAKER INSPECTION .)
16	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
17	Auxiliary jack/USB port/SD card slot hub (Type-A) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .) USB port/SD card slot hub (Type-B) (See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See USB PORT/SD CARD SLOT HUB INSPECTION .)
