Center Display Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the center speaker grille. (See CENTER SPEAKER GRILLE REMOVAL/INSTALLATION .)

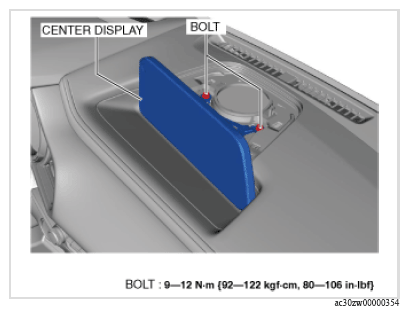

  3. Remove the bolts.
    Fig 1: Center Display Bolts With Torque Specification
    G16377218Courtesy of MAZDA MOTORS CORP.

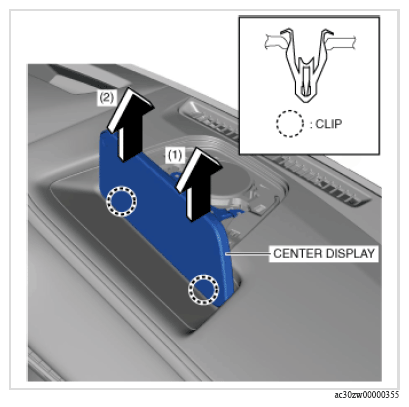

  4. Pull the center display in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips.
    G16377219Courtesy of MAZDA MOTORS CORP.

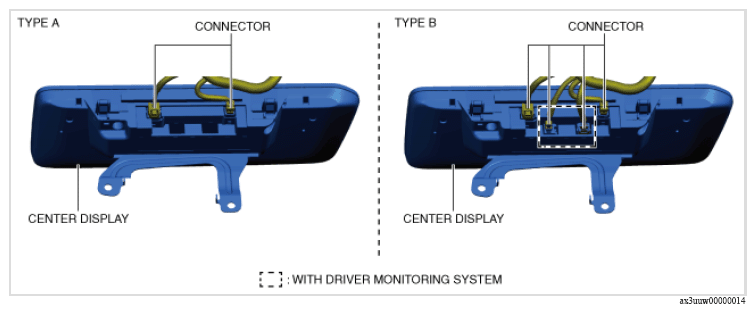

  5. Disconnect the connectors.
    G16377220Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
