Welding Cautionary Notes

Various electronic components are used in vehicles. In order to protect these parts from overcurrent generated during welding, the following must be strictly observed.

Before welding, be sure to disconnect the positive and negative terminals of the battery.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Battery terminal

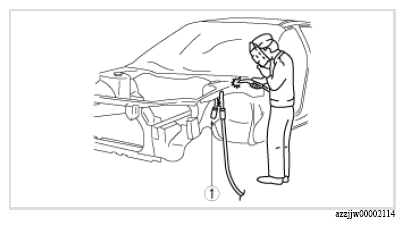

Connect the welding ground securely near the welding area.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Ground

Cover the parts surrounding the welding area during welding and be very careful of weld spatter.
