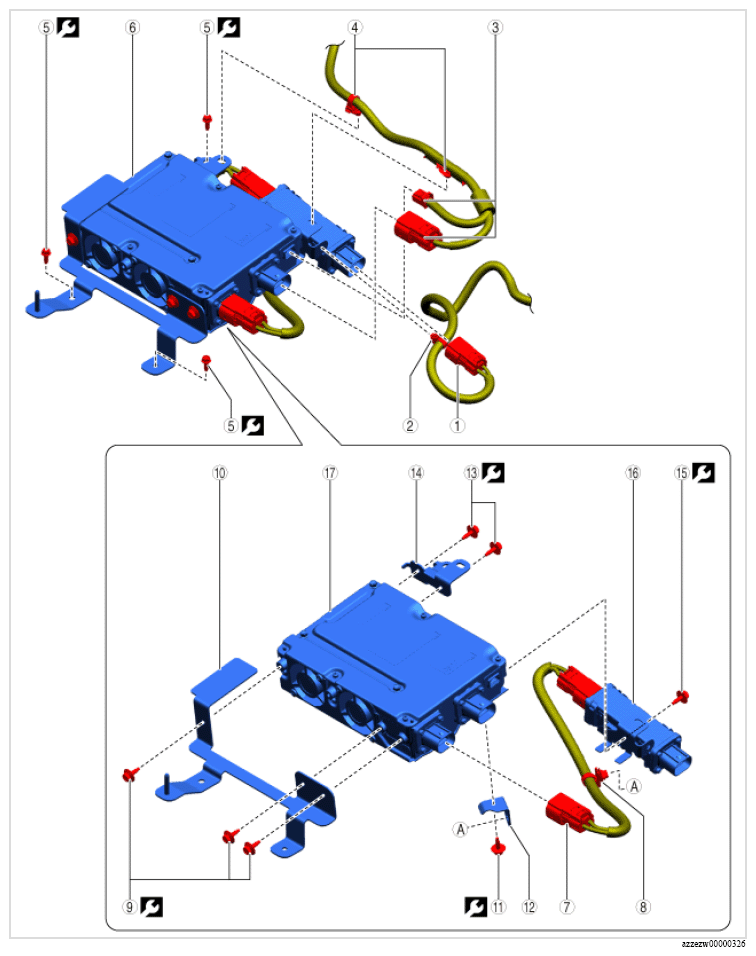

Remove 1500W PSU: Notes
- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Connector (See CONNECTOR DISCONNECTION NOTE ) (See CONNECTOR CONNECTION NOTE ) |
- |
| 2 | Wiring harness clip | - |
| 3 | Connector | - |
| 4 | Wiring harness clip | - |
| 5 | Bolt | 11. N.m {110 kgf.cm, 95 in.lb} |
| 6 | 1500W PSU component | - |
| 7 | Connector (See CONNECTOR DISCONNECTION NOTE ) (See CONNECTOR CONNECTION NOTE ) |
- |
| 8 | Wiring harness clip | - |
| 9 | Bolt | 5.5 N.m {56 kgf.cm, 49 in.lb} |
| 10 | Bracket | - |
| 11 | Bolt | 5.5 N.m {56 kgf.cm, 49 in.lb} |
| 12 | Bracket | - |
| 13 | Bolt | 5.5 N.m {56 kgf.cm, 49 in.lb} |
| 14 | Bracket | - |
| 15 | Bolt | 5.5 N.m {56 kgf.cm, 49 in.lb} |
| 16 | Fuse box component | - |
| 17 | 1500W PSU | - |
