Remove Lower Column Cover: Notes

NOTE:

• If the lower column cover is replaced, remove the notification and warning sound speaker (front).

1. Remove using the procedure shown in the figure.

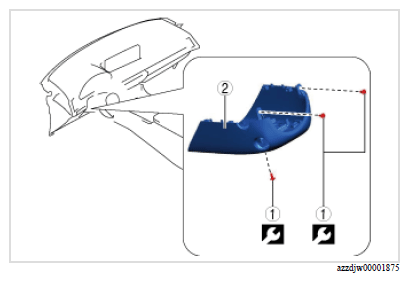

Fig 1: Lower Column Cover Screw With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Screw	2.5 N.m {25 kgf.cm, 22 in.lbf}
2	Lower column cover (See Lower column cover removal note ).	-
