Remove Select Lever: Notes

Remove using the procedure shown in the figure.

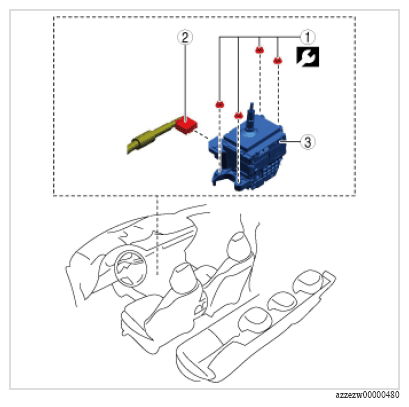

Fig 1: Select Lever Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Select lever connector	-
3	Selector lever (See Selector lever knob installation note )	-
