Remove Driver Side Edge Rubber: Notes

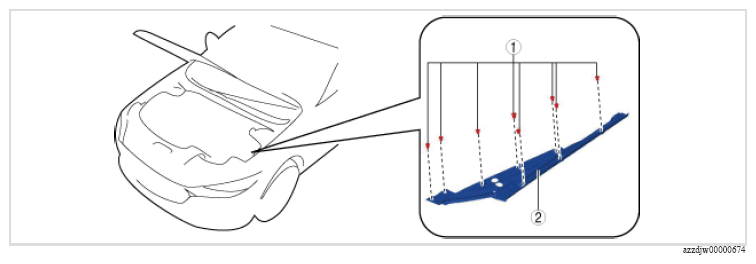

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
PART NAME DESCRIPTIONStep Part name 1 Fastener 2 Edge rubber
(See Edge rubber removal note ).
| Step | Part name |
|---|---|
| 1 | Fastener |
| 2 | Edge rubber (See Edge rubber removal note ). |
