Remove Front Bumper Component: Notes
CAUTION:

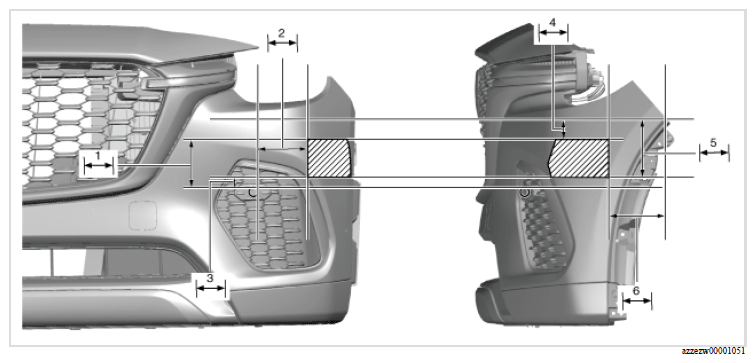

- When repainting the front bumper face, do not repaint the radar emitting area shown in the figure (same as right side) because the radar sensor (front side) aiming may not be performed correctly.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| Radar emitting area | |
| 150 mm {5.91 in} | |
| 110 mm {4.33 in} | |
| 25 mm {0.98 in} | |
| 35 mm {1.4 in} | |
| 160 mm {6.30 in} | |
| 100 mm {3.94 in} |

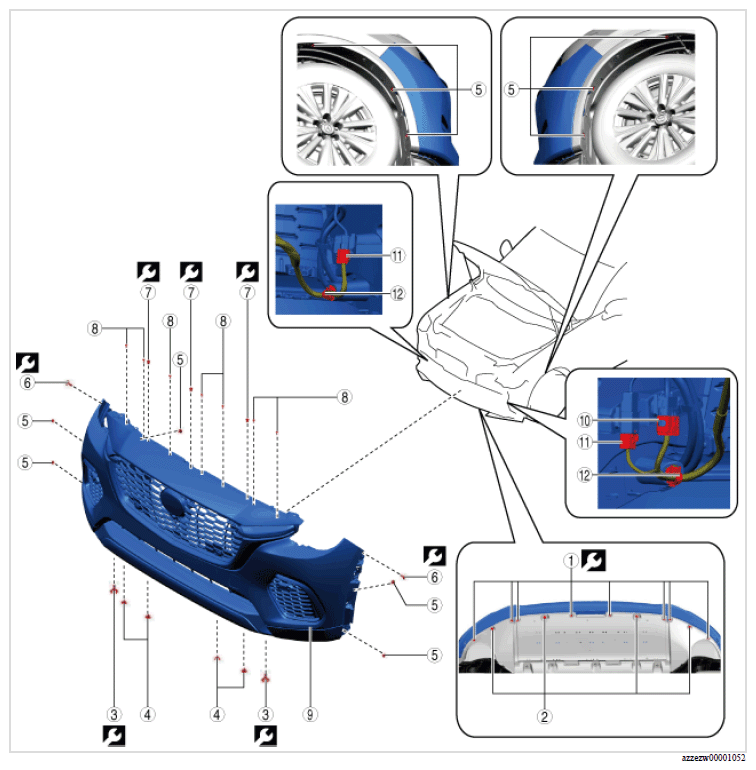

- Remove using the procedure shown in the figure.TIGHTENING TORQUE SPECIFICATIONS
Step Part name Applicable condition 1 Screw - 2.0 N.m {20 kgf.cm, 18 in.lbf} 2 Fastener A - - 3 Bolt A
(See Bolt A removal note ).- 8.5 N.m {87 kgf.cm, 75 in.lbf} 4 Fastener B
(See Fastener B removal note ).- - 5 Fastener C - - 6 Fastener D
(See Fastener D removal note ).- - 7 Bolt B - 8.5 N.m {87 kgf.cm, 75 in.lbf} 8 Bolt C - 8.5 N.m {87 kgf.cm, 75 in.lbf} 9 Front bumper component
(See Front bumper component removal note ).- - 10 Connector With 360° view monitor - 11 Connector - - 12 Wiring harness clip
(See Wiring harness clip removal note ).- -
