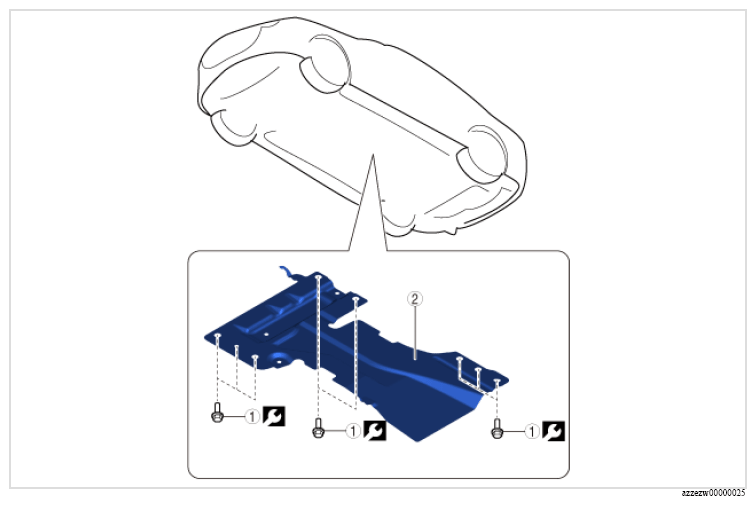

Remove Tunnel Member: Notes
- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Bolt (See Bolt installation note ) |
22 N.m {2.25 kgf.m, 16.25 ft.lbf} |
| 2 | Tunnel member | - |
| Step | Part name | |
|---|---|---|
| 1 | Bolt (See Bolt installation note ) |
22 N.m {2.25 kgf.m, 16.25 ft.lbf} |
| 2 | Tunnel member | - |
