Automatic Transmission Shift Mechanism

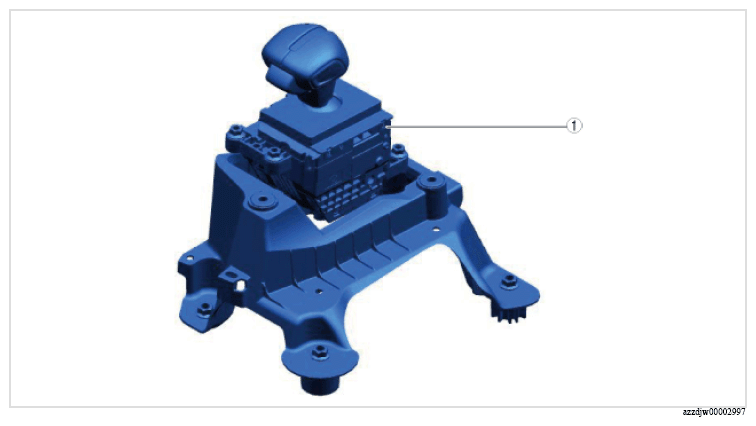

Fig 1: Automatic Transmission Shift Mechanism Components Location

Courtesy of MAZDA MOTORS CORP.

AUTOMATIC TRANSMISSION SHIFT MECHANISM COMPONENT OPERATIONS

Component No	Refer to
1	Selector lever component (See SELECTOR LEVER INSPECTION ) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION )
