Upper panel removal note

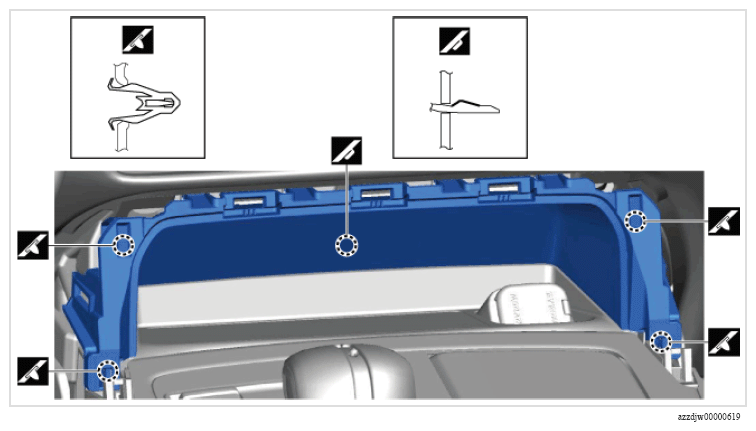

  1. Remove the upper panel as shown in the figure
    G16708888Courtesy of MAZDA MOTORS CORP.
